Pizza oven canopy
Materials and products
One finish for everything new, matched to what is already on the house, and the two Everdure pieces John owns.
Colorbond Monument Matt. Fascia, apron flashing, gutter, roof sheet and the wraps around the two columns. The matt finish is a different colour from standard Monument: BlueScope publish it as #292E2A. It marks easily, which is why the stand is drawn 150 off the wall.
The wall cladding. Fielders Prominence, the 265 wide profile, 0.55 thick, ribs 38 high, Matt Monument (fielders.com.au/profiles/prominence). John first gave it as the 465; his photo shows about nine ribs across the 2500 run, and on 12 Oct 2026 he said to go with the 265.
Some sheets may be replaced. Harry is thinking about replacing a couple of the cladding sheets on this wall because they are in not great condition (John, 12 Oct 2026). Which sheets, and when, is not settled. The natural time is while the wall is open for the downpipe and the canopy. Replacement sheets are to be the 265.
New beside old. A new matt sheet next to weathered ones may look a touch different at first. Not checked with Fielders.

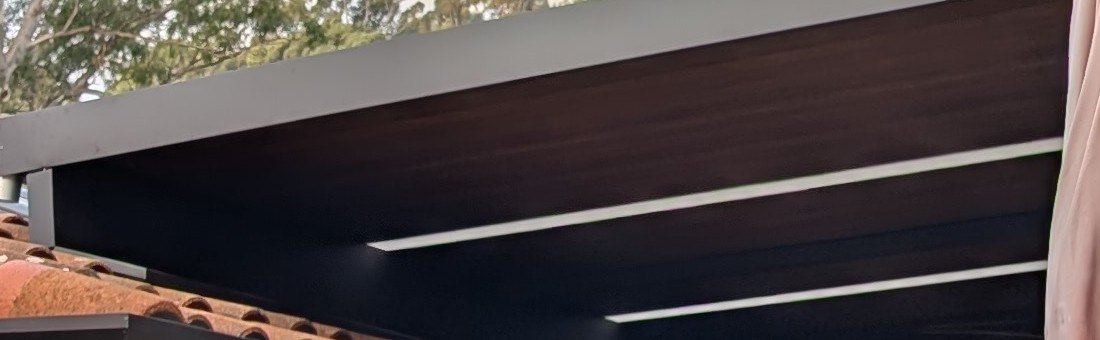

Underside. Timber-look aluminium battens, non-combustible, matched to the existing eave from a sample.
Steel. Hot-dip galvanised, wrapped in folded Monument Matt. No powder coating to wait on.

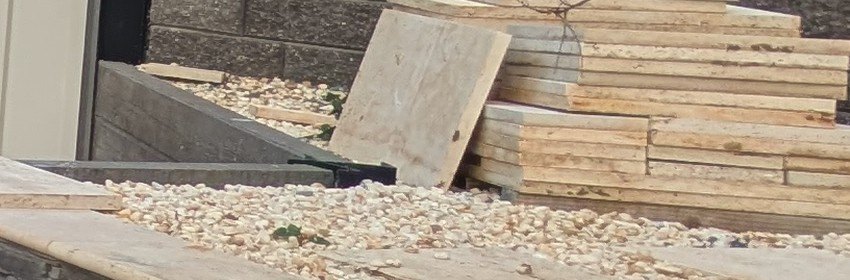

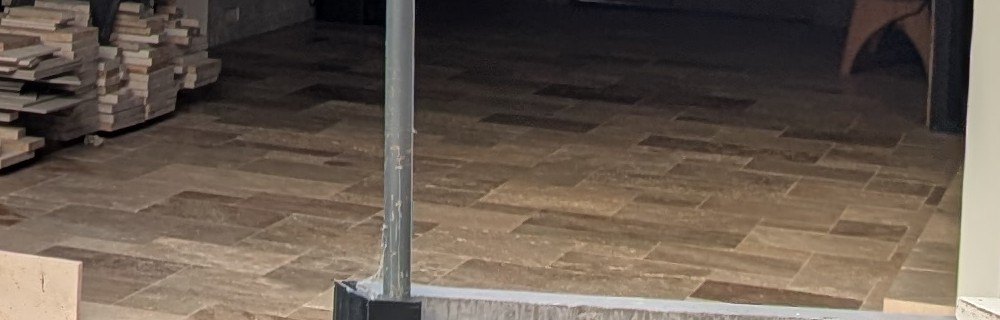

Paving. Travertine in a French pattern, continuing the existing paving, cut tight around the two columns.
Everdure Kiln 2, Terracotta. 660 wide, 741 deep, 380 high, no chimney. John owns it.
Everdure prep stand. 1400 wide, 640 deep, 970 high on castors; 1530 over the side handles.
Costs. Nothing here has been priced yet. Sheet P06 carries the quantities for Harry to price from.
To confirm or price
- Harry: a tape across two ribs before ordering, to confirm 265.
- Harry: which sheets are being replaced, and can it be done while the wall is open for the canopy?
- A sample of the timber-look batten against the existing eave.
- Kiln 2 manual: clearances above and behind.
